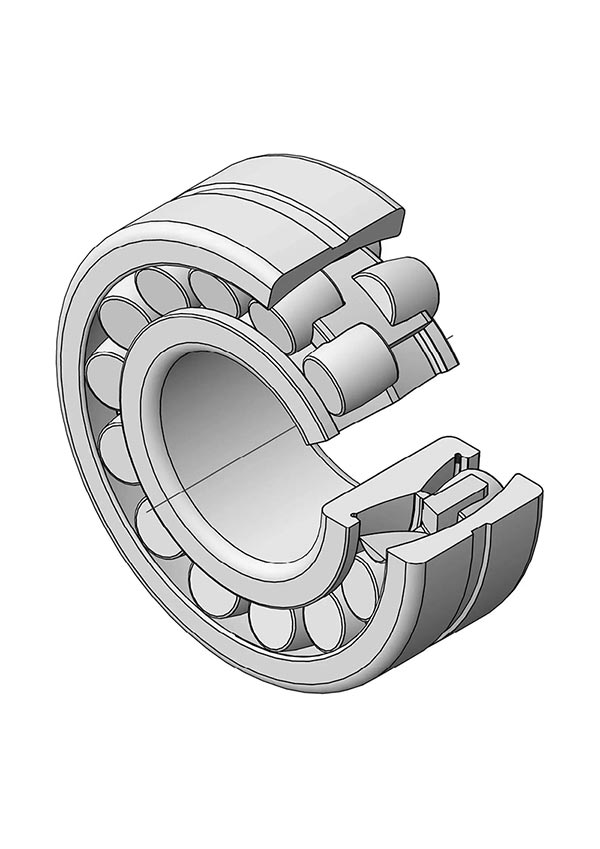

Pallomaiset rullalaakerit
Ammattimaisena valmistajana Kiinassa BMT valmistaa pallomaisia rullalaakereita, joissa on yksi tai kaksi riviä piippumaisia rullia, jotka on järjestetty kulmaan laakerin akseliin nähden. Tämän rakenteen ansiosta ne kestävät suuria akselin taipumia ja taivutuksia, joten ne sopivat erityisen hyvin raskaaseen teollisuuskäyttöön.
Tämä tuote tarjoaa luotettavan mittavakauden korkeissa säteittäisissä ja kohtalaisissa aksiaalikuormissa säilyttäen samalla pienen kitkan.

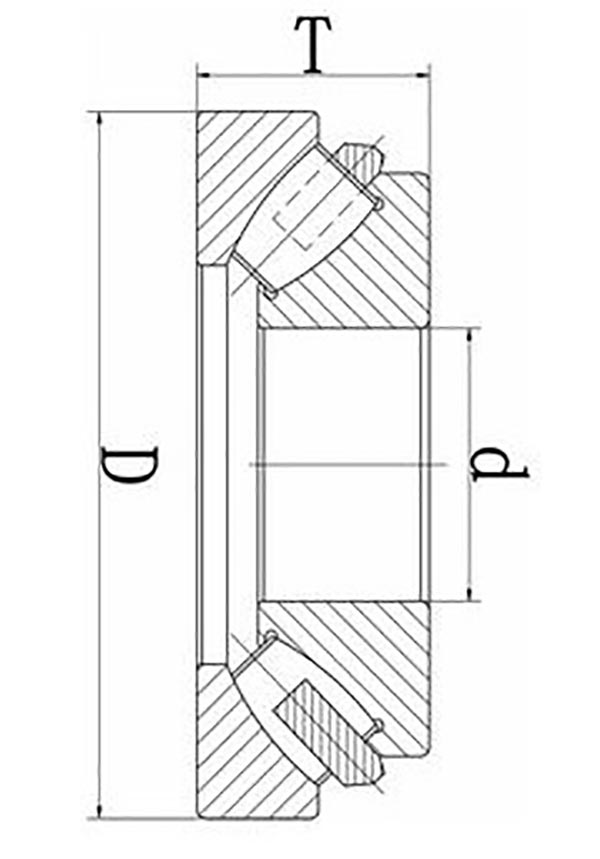

Radiaalirakenteiden lisäksi tähän laakeriluokkaan kuuluu myöspallomaiset rullan painelaakerit. Nämä erikoistuneet painelaakerit kestävät raskaita yksisuuntaisia aksiaalikuormia ja kohtalaisia säteittäisiä kuormia samalla kun ne mahdollistavat rajoitetun kulmapoikkeaman ja tasaisen pyörimisen. Yleisiä pallomaisten rullalaakereiden vakiosarjoja ovat 292, 293 ja 294.
- View as
Pallomaiset rullalaakerit
BMT on johtava pallomaisten rullalaakereiden valmistaja Kiinassa, joka tarjoaa tehokkaita ratkaisuja teollisuuskäyttäjille maailmanlaajuisesti. Laakereissamme on pallomaiset rullat ja kupera ratarakenne, joka kestää äärimmäisiä aksiaalisia kuormituksia ja kompensoi akselin lieviä kohdistusvirheitä – joten ne käsittelevät helposti raskaat aksiaaliset kuormat, jopa pienet akselivirheet.

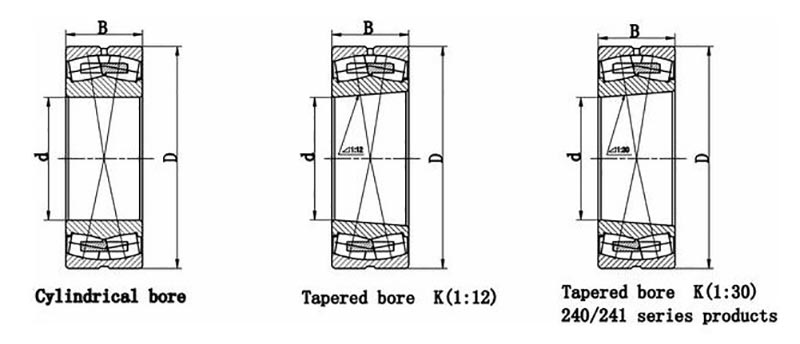

| Laakerin numero | d (mm) | D (mm) | B (mm) | Dynaaminen Cr (kN) | Staattinen Cor (kN) |
| 21304 CA/W33 / CAK/W33 | 20 | 52 | 15 | 34 | 33.5 |
| 21305 CA/W33 / CAK/W33 | 25 | 62 | 17 | 46 | 47.5 |
| 21306 CA/W33 / CAK/W33 | 30 | 72 | 19 | 59.5 | 62.5 |
| 21307 CA/W33 / CAK/W33 | 35 | 80 | 21 | 69.5 | 76 |
| 21308 CA/W33 / CAK/W33 | 40 | 90 | 23 | 85.5 | 95.5 |
| 21309 CA/W33 / CAK/W33 | 45 | 100 | 25 | 108 | 124 |
| 21310 CA/W33 / CAK/W33 | 50 | 110 | 27 | 128 | 151 |
| 21311 CA/W33 / CAK/W33 | 55 | 120 | 29 | 144 | 165 |
| 21312 CA/W33 / CAK/W33 | 60 | 130 | 31 | 168 | 193 |
| 21313 CA/W33 / CAK/W33 | 65 | 140 | 33 | 194 | 232 |
| 21314 CA/W33 / CAK/W33 | 70 | 150 | 35 | 215 | 260 |
| 21315 CA/W33 / CAK/W33 | 75 | 160 | 37 | 245 | 298 |
| 21316 CA/W33 / CAK/W33 | 80 | 170 | 39 | 275 | 339 |
| 21317 CA/W33 / CAK/W33 | 85 | 180 | 41 | 300 | 372 |
| 21318 CA/W33 / CAK/W33 | 90 | 190 | 43 | 330 | 410 |
| 21319 CA/W33 / CAK/W33 | 95 | 200 | 45 | 362 | 461 |
| 21320 CA/W33 / CAK/W33 | 100 | 215 | 47 | 416 | 524 |
| 21322 CA/W33 / CAK/W33 | 110 | 240 | 50 | 485 | 635 |
| 21324 CA/W33 / CAK/W33 | 120 | 260 | 55 | 570 | 765 |
| 22205 CA/W33 / CAK/W33 | 25 | 52 | 18 | 45.5 | 48 |
| 22206 CA/W33 / CAK/W33 | 30 | 62 | 20 | 61 | 65 |
| 22207 CA/W33 / CAK/W33 | 35 | 72 | 23 | 80.5 | 88.5 |
| 22208 CA/W33 / CAK/W33 | 40 | 80 | 23 | 90.5 | 102 |
| 22209 CA/W33 / CAK/W33 | 45 | 85 | 23 | 95.5 | 110 |
| 22210 CA/W33 / CAK/W33 | 50 | 90 | 23 | 102 | 122 |
| 22211 CA/W33 / CAK/W33 | 55 | 100 | 25 | 123 | 144 |
| 22212 CA/W33 / CAK/W33 | 60 | 110 | 28 | 151 | 179 |
| 22213 CA/W33 / CAK/W33 | 65 | 120 | 31 | 177 | 209 |
| 22214 CA/W33 / CAK/W33 | 70 | 125 | 31 | 185 | 220 |
| 22215 CA/W33 / CAK/W33 | 75 | 130 | 31 | 191 | 234 |
| 22216 CA/W33 / CAK/W33 | 80 | 140 | 33 | 215 | 269 |
| 22217 CA/W33 / CAK/W33 | 85 | 150 | 36 | 255 | 320 |
| 22218 CA/W33 / CAK/W33 | 90 | 160 | 40 | 294 | 375 |
| 22219 CA/W33 / CAK/W33 | 95 | 170 | 43 | 335 | 420 |
| 22220 CA/W33 / CAK/W33 | 100 | 180 | 46 | 375 | 480 |
| 22222 CA/W33 / CAK/W33 | 110 | 200 | 53 | 490 | 640 |
| 22224 CA/W33 / CAK/W33 | 120 | 215 | 58 | 565 | 765 |
| 22226 CA/W33 / CAK/W33 | 130 | 230 | 64 | 655 | 915 |
| 22228 CA/W33 / CAK/W33 | 140 | 250 | 68 | 755 | 1030 |
| 22230 CA/W33 / CAK/W33 | 150 | 270 | 73 | 864 | 1200 |
| 22232 CA/W33 / CAK/W33 | 160 | 290 | 80 | 885 | 1330 |
| 22234 CA/W33 / CAK/W33 | 170 | 310 | 86 | 1000 | 1510 |
| 22236 CA/W33 / CAK/W33 | 180 | 320 | 86 | 1050 | 1610 |
| 22238 CA/W33 / CAK/W33 | 190 | 340 | 92 | 1140 | 1740 |
| 22240 CA/W33 / CAK/W33 | 200 | 360 | 98 | 1300 | 1990 |
| 22244 CA/W33 / CAK/W33 | 220 | 400 | 108 | 1540 | 2380 |
| 22248 CA/W33 / CAK/W33 | 240 | 440 | 120 | 1890 | 2930 |
| 22252 CA/W33 / CAK/W33 | 260 | 480 | 130 | 2230 | 3500 |
| 22256 CA/W33 / CAK/W33 | 280 | 500 | 130 | 2320 | 3700 |
| 22260 CA/W33 / CAK/W33 | 300 | 540 | 140 | 2670 | 4300 |
| 22264 CA/W33 / CAK/W33 | 320 | 580 | 150 | 3050 | 4900 |
| 22268 CA/W33 / CAK/W33 | 340 | 620 | 165 | 4050 | 6850 |
| 22307 CA/W33 / CAK/W33 | 35 | 80 | 31 | 104 | 107 |
| 22308 CA/W33 / CAK/W33 | 40 | 90 | 33 | 135 | 151 |
| 22309 CA/W33 / CAK/W33 | 45 | 100 | 36 | 165 | 182 |
| 22310 CA/W33 / CAK/W33 | 50 | 110 | 40 | 203 | 235 |
| 22311 CA/W33 / CAK/W33 | 55 | 120 | 43 | 235 | 263 |
| 22312 CA/W33 / CAK/W33 | 60 | 130 | 46 | 281 | 330 |
| 22313 CA/W33 / CAK/W33 | 65 | 140 | 48 | 300 | 355 |
| 22314 CA/W33 / CAK/W33 | 70 | 150 | 51 | 345 | 415 |
| 22315 CA/W33 / CAK/W33 | 75 | 160 | 55 | 395 | 475 |
| 22316 CA/W33 / CAK/W33 | 80 | 170 | 58 | 430 | 520 |
| 22317 CA/W33 / CAK/W33 | 85 | 180 | 60 | 480 | 585 |
| 22318 CA/W33 / CAK/W33 | 90 | 190 | 64 | 535 | 660 |
| 22319 CA/W33 / CAK/W33 | 95 | 200 | 67 | 585 | 725 |
| 22320 CA/W33 / CAK/W33 | 100 | 215 | 73 | 700 | 875 |
| 22322 CA/W33 / CAK/W33 | 110 | 240 | 80 | 825 | 1040 |
| 22324 CA/W33 / CAK/W33 | 120 | 260 | 86 | 897 | 1130 |
| 22326 CA/W33 / CAK/W33 | 130 | 280 | 93 | 1050 | 1340 |
| 22328 CA/W33 / CAK/W33 | 140 | 300 | 102 | 1110 | 1520 |
| 22330 CA/W33 / CAK/W33 | 150 | 320 | 108 | 1270 | 1740 |
| 22332 CA/W33 / CAK/W33 | 160 | 340 | 114 | 1400 | 1950 |
| 22334 CA/W33 / CAK/W33 | 170 | 360 | 120 | 1550 | 2200 |
| 22336 CA/W33 / CAK/W33 | 180 | 380 | 126 | 1710 | 2400 |
| 22338 CA/W33 / CAK/W33 | 190 | 400 | 132 | 1870 | 2670 |
| 22340 CA/W33 / CAK/W33 | 200 | 420 | 138 | 2080 | 3000 |
| 22344 CA/W33 / CAK/W33 | 220 | 460 | 145 | 2430 | 3600 |
| 22348 CA/W33 / CAK/W33 | 240 | 500 | 155 | 2770 | 4100 |
| 22352 CA/W33 / CAK/W33 | 260 | 540 | 165 | 3150 | 4750 |
| 22356 CA/W33 / CAK/W33 | 280 | 580 | 175 | 3550 | 5450 |
| 22360 CA/W33 / CAK/W33 | 300 | 620 | 185 | 3950 | 6050 |
| 23022 CA/W33 / CAK/W33 | 110 | 170 | 45 | 298 | 475 |
| 23024 CA/W33 / CAK/W33 | 120 | 180 | 46 | 310 | 515 |
| 23026 CA/W33 / CAK/W33 | 130 | 200 | 52 | 400 | 660 |
| 23028 CA/W33 / CAK/W33 | 140 | 210 | 53 | 420 | 710 |
| 23030 CA/W33 / CAK/W33 | 150 | 225 | 56 | 460 | 790 |
| 23032 CA/W33 / CAK/W33 | 160 | 240 | 60 | 530 | 915 |
| 23034 CA/W33 / CAK/W33 | 170 | 260 | 67 | 630 | 1080 |
| 23036 CA/W33 / CAK/W33 | 180 | 280 | 74 | 773 | 1330 |
| 23038 CA/W33 / CAK/W33 | 190 | 290 | 75 | 760 | 1330 |
| 23040 CA/W33 / CAK/W33 | 200 | 310 | 82 | 900 | 1560 |
| 23044 CA/W33 / CAK/W33 | 220 | 340 | 90 | 1060 | 1880 |
| 23048 CA/W33 / CAK/W33 | 240 | 360 | 92 | 1100 | 2000 |
| 23052 CA/W33 / CAK/W33 | 260 | 400 | 104 | 1400 | 2530 |
| 23056 CA/W33 / CAK/W33 | 280 | 420 | 106 | 1460 | 2720 |
| 23060 CA/W33 / CAK/W33 | 300 | 460 | 118 | 1800 | 3300 |
| 23064 CA/W33 / CAK/W33 | 320 | 480 | 121 | 1860 | 3500 |
| 23068 CA/W33 / CAK/W33 | 340 | 520 | 133 | 2270 | 4300 |
| 23072 CA/W33 / CAK/W33 | 360 | 540 | 134 | 2320 | 4500 |
| 23076 CA/W33 / CAK/W33 | 380 | 560 | 135 | 2370 | 4700 |
| 23080 CA/W33 / CAK/W33 | 400 | 600 | 148 | 2800 | 5500 |
| 23084 CA/W33 / CAK/W33 | 420 | 620 | 150 | 2910 | 5850 |
| 23088 CA/W33 / CAK/W33 | 440 | 650 | 157 | 3100 | 6250 |
| 23092 CA/W33 / CAK/W33 | 460 | 680 | 163 | 3400 | 6850 |
| 23096 CA/W33 / CAK/W33 | 480 | 700 | 165 | 3500 | 7250 |
| 230/500 CA/W33 / CAK/W33 | 500 | 720 | 167 | 3650 | 7650 |
| 230/530 CA/W33 / CAK/W33 | 530 | 780 | 185 | 4500 | 9450 |
| 230/560 CA/W33 / CAK/W33 | 560 | 820 | 195 | 5050 | 10800 |
| 230/600 CA/W33 / CAK/W33 | 600 | 870 | 200 | 5500 | 12000 |
| 230/630 CA/W33 / CAK/W33 | 630 | 920 | 212 | 6000 | 13100 |
| 230/670 CA/W33 / CAK/W33 | 670 | 980 | 230 | 6950 | 15300 |
| 230/710 CA/W33 / CAK/W33 | 710 | 1030 | 236 | 7450 | 16600 |
| 230/750 CA/W33 / CAK/W33 | 750 | 1090 | 250 | 8400 | 18900 |
| 230/800 CA/W33 / CAK/W33 | 800 | 1150 | 258 | 8800 | 20900 |
| 230/850 CA/W33 / CAK/W33 | 850 | 1220 | 272 | 9750 | 22500 |
| 230/900 CA/W33 / CAK/W33 | 900 | 1280 | 280 | 10500 | 25400 |
| 230/950 CA/W33 / CAK/W33 | 950 | 1360 | 300 | 11600 | 27200 |
| 23120 CA/W33 / CAK/W33 | 100 | 165 | 52 | 325 | 500 |
| 23122 CA/W33 / CAK/W33 | 110 | 180 | 56 | 390 | 610 |
| 23124 CA/W33 / CAK/W33 | 120 | 200 | 62 | 485 | 720 |
| 23126 CA/W33 / CAK/W33 | 130 | 210 | 64 | 497 | 799 |
| 23128 CA/W33 / CAK/W33 | 140 | 225 | 68 | 568 | 940 |
| 23130 CA/W33 / CAK/W33 | 150 | 250 | 80 | 722 | 1230 |
| 23132 CA/W33 / CAK/W33 | 160 | 270 | 86 | 852 | 1430 |
| 23134 CA/W33 / CAK/W33 | 170 | 280 | 88 | 910 | 1530 |
| 23136 CA/W33 / CAK/W33 | 180 | 300 | 96 | 1070 | 1710 |
| 23138 CA/W33 / CAK/W33 | 190 | 320 | 104 | 1240 | 2120 |
| 23140 CA/W33 / CAK/W33 | 200 | 340 | 112 | 1400 | 2390 |
| 23144 CA/W33 / CAK/W33 | 220 | 370 | 120 | 1620 | 2870 |
| 23148 CA/W33 / CAK/W33 | 240 | 400 | 128 | 1880 | 3350 |
| 23152 CA/W33 / CAK/W33 | 260 | 440 | 144 | 2250 | 4000 |
| 23156 CA/W33 / CAK/W33 | 280 | 460 | 146 | 2310 | 4200 |
| 23160 CA/W33 / CAK/W33 | 300 | 500 | 160 | 2650 | 4750 |
| 23164 CA/W33 / CAK/W33 | 320 | 540 | 176 | 3150 | 5700 |
| 23168 CA/W33 / CAK/W33 | 340 | 580 | 190 | 3700 | 6750 |
| 23172 CA/W33 / CAK/W33 | 360 | 600 | 192 | 3850 | 7250 |
| 23176 CA/W33 / CAK/W33 | 380 | 620 | 194 | 3900 | 7400 |
| 23180 CA/W33 / CAK/W33 | 400 | 650 | 220 | 4150 | 7900 |
| 23184 CA/W33 / CAK/W33 | 420 | 700 | 224 | 4900 | 9250 |
| 23188 CA/W33 / CAK/W33 | 440 | 720 | 226 | 5150 | 10000 |
| 23192 CA/W33 / CAK/W33 | 460 | 760 | 240 | 5750 | 11200 |
| 23196 CA/W33 / CAK/W33 | 480 | 790 | 248 | 6100 | 12000 |
| 231/500 CA/W33 / CAK/W33 | 500 | 830 | 264 | 6700 | 13000 |
| 231/530 CA/W33 / CAK/W33 | 530 | 870 | 272 | 7350 | 14600 |
| 231/560 CA/W33 / CAK/W33 | 560 | 920 | 280 | 7950 | 15800 |
| 231/600 CA/W33 / CAK/W33 | 600 | 980 | 300 | 8700 | 17500 |
| 231/630 CA/W33 / CAK/W33 | 630 | 1030 | 315 | 9700 | 19800 |
| 231/670 CA/W33 / CAK/W33 | 670 | 1090 | 336 | 11000 | 23000 |
| 231/710 CA/W33 / CAK/W33 | 710 | 1150 | 345 | 12100 | 25300 |
| 231/750 CA/W33 / CAK/W33 | 750 | 1220 | 365 | 13000 | 27700 |
| 231/800 CA/W33 / CAK/W33 | 800 | 1280 | 375 | 14400 | 31000 |
| 23216 CA/W33 / CAK/W33 | 80 | 140 | 44.4 | 241 | 335 |
| 23217 CA/W33 / CAK/W33 | 85 | 150 | 49.2 | 285 | 405 |
| 23218 CA/W33 / CAK/W33 | 90 | 160 | 52.4 | 337 | 482 |
| 23219 CA/W33 / CAK/W33 | 95 | 170 | 55.6 | 360 | 510 |
| 23220 CA/W33 / CAK/W33 | 100 | 180 | 60.3 | 427 | 629 |
| 23222 CA/W33 / CAK/W33 | 110 | 200 | 69.8 | 538 | 793 |
| 23224 CA/W33 / CAK/W33 | 120 | 215 | 76 | 620 | 956 |
| 23226 CA/W33 / CAK/W33 | 130 | 230 | 80 | 705 | 1090 |
| 23228 CA/W33 / CAK/W33 | 140 | 250 | 88 | 814 | 1290 |
| 23230 CA/W33 / CAK/W33 | 150 | 270 | 96 | 961 | 1540 |
| 23232 CA/W33 / CAK/W33 | 160 | 290 | 104 | 1080 | 1710 |
| 23234 CA/W33 / CAK/W33 | 170 | 310 | 110 | 1240 | 1970 |
| 23236 CA/W33 / CAK/W33 | 180 | 320 | 112 | 1290 | 2100 |
| 23238 CA/W33 / CAK/W33 | 190 | 340 | 120 | 1490 | 2450 |
| 23240 CA/W33 / CAK/W33 | 200 | 360 | 128 | 1620 | 2750 |
| 23244 CA/W33 / CAK/W33 | 220 | 400 | 144 | 2100 | 3500 |
| 23248 CA/W33 / CAK/W33 | 240 | 440 | 160 | 2440 | 4100 |
| 23252 CA/W33 / CAK/W33 | 260 | 480 | 174 | 2860 | 4800 |
| 23256 CA/W33 / CAK/W33 | 280 | 500 | 176 | 3000 | 5200 |
| 23260 CA/W33 / CAK/W33 | 300 | 540 | 192 | 3550 | 6250 |
| 23264 CA/W33 / CAK/W33 | 320 | 580 | 208 | 4050 | 7200 |
| 23268 CA/W33 / CAK/W33 | 340 | 620 | 224 | 4550 | 8000 |
| 23272 CA/W33 / CAK/W33 | 360 | 650 | 232 | 5000 | 9000 |
| 23276 CA/W33 / CAK/W33 | 380 | 680 | 240 | 5400 | 9800 |
| 23280 CA/W33 / CAK/W33 | 400 | 720 | 256 | 6100 | 11100 |
| 23284 CA/W33 / CAK/W33 | 420 | 760 | 272 | 6750 | 12500 |
| 23288 CA/W33 / CAK/W33 | 440 | 790 | 280 | 7200 | 13300 |
| 23292 CA/W33 / CAK/W33 | 460 | 830 | 296 | 7650 | 14500 |
| 23296 CA/W33 / CAK/W33 | 480 | 870 | 310 | 8150 | 15400 |
| 232/500 CA/W33 / CAK/W33 | 500 | 920 | 336 | 9500 | 17800 |
| 232/530 CA/W33 / CAK/W33 | 530 | 980 | 355 | 11000 | 21000 |
| 232/560 CA/W33 / CAK/W33 | 560 | 1030 | 365 | 11500 | 22000 |
| 232/600 CA/W33 / CAK/W33 | 600 | 1090 | 388 | 12900 | 25100 |
| 23920 CA/W33 / CAK/W33 | 100 | 140 | 30 | 142 | 233 |
| 23926 CA/W33 / CAK/W33 | 130 | 180 | 37 | 204 | 355 |
| 23928 CA/W33 / CAK/W33 | 140 | 190 | 37 | 248 | 466 |
| 23930 CA/W33 / CAK/W33 | 150 | 210 | 45 | 334 | 622 |
| 23932 CA/W33 / CAK/W33 | 160 | 220 | 45 | 341 | 649 |
| 23934 CA/W33 / CAK/W33 | 170 | 230 | 45 | 353 | 691 |
| 23936 CA/W33 / CAK/W33 | 180 | 250 | 52 | 480 | 939 |
| 23938 CA/W33 / CAK/W33 | 190 | 260 | 52 | 487 | 969 |
| 23940 CA/W33 / CAK/W33 | 200 | 280 | 60 | 603 | 1190 |
| 23944 CA/W33 / CAK/W33 | 220 | 300 | 60 | 605 | 1190 |
| 23948 CA/W33 / CAK/W33 | 240 | 320 | 60 | 625 | 1260 |
| 23952 CA/W33 / CAK/W33 | 260 | 360 | 75 | 895 | 1780 |
| 23956 CA/W33 / CAK/W33 | 280 | 380 | 75 | 905 | 1840 |
| 23960 CA/W33 / CAK/W33 | 300 | 420 | 90 | 1250 | 2520 |
| 23964 CA/W33 / CAK/W33 | 320 | 440 | 90 | 1270 | 2610 |
| 23968 CA/W33 / CAK/W33 | 340 | 460 | 90 | 1320 | 2790 |
| 23972 CA/W33 / CAK/W33 | 360 | 480 | 90 | 1360 | 2960 |
| 23976 CA/W33 / CAK/W33 | 380 | 520 | 106 | 1720 | 3650 |
| 23980 CA/W33 / CAK/W33 | 400 | 540 | 106 | 1780 | 3900 |
| 23984 CA/W33 / CAK/W33 | 420 | 560 | 106 | 1810 | 4000 |
| 23988 CA/W33 / CAK/W33 | 440 | 600 | 118 | 2230 | 4900 |
| 23992 CA/W33 / CAK/W33 | 460 | 620 | 118 | 2220 | 4900 |
| 23996 CA/W33 / CAK/W33 | 480 | 650 | 128 | 2390 | 5450 |
| 239/500 CA/W33 / CAK/W33 | 500 | 670 | 128 | 2450 | 5700 |
| 239/530 CA/W33 / CAK/W33 | 530 | 710 | 136 | 2940 | 6800 |
| 239/560 CA/W33 / CAK/W33 | 560 | 750 | 140 | 3050 | 6950 |
| 239/600 CA/W33 / CAK/W33 | 600 | 800 | 150 | 3450 | 8050 |
| 239/630 CA/W33 / CAK/W33 | 630 | 850 | 165 | 4150 | 9700 |
| 239/670 CA/W33 / CAK/W33 | 670 | 900 | 170 | 4450 | 10500 |
| 239/710 CA/W33 / CAK/W33 | 710 | 950 | 180 | 5000 | 12100 |
| 239/750 CA/W33 / CAK/W33 | 750 | 1000 | 185 | 5400 | 13200 |
| 239/800 CA/W33 / CAK/W33 | 800 | 1060 | 195 | 5850 | 14500 |
| 239/850 CA/W33 / CAK/W33 | 850 | 1120 | 200 | 6200 | 15600 |
| 239/900 CA/W33 / CAK/W33 | 900 | 1180 | 206 | 6700 | 17000 |
| 239/950 CA/W33 / CAK/W33 | 950 | 1250 | 224 | 7750 | 19900 |
| 24024 CA/W33 / CAK/W33 | 120 | 180 | 60 | 388 | 683 |
| 24026 CA/W33 / CAK/W33 | 130 | 200 | 69 | 510 | 900 |
| 24028 CA/W33 / CAK/W33 | 140 | 210 | 69 | 510 | 920 |
| 24030 CA/W33 / CAK/W33 | 150 | 225 | 75 | 580 | 1060 |
| 24032 CA/W33 / CAK/W33 | 160 | 240 | 80 | 685 | 1280 |
| 24034 CA/W33 / CAK/W33 | 170 | 260 | 90 | 810 | 1480 |
| 24036 CA/W33 / CAK/W33 | 180 | 280 | 100 | 960 | 1760 |
| 24038 CA/W33 / CAK/W33 | 190 | 290 | 100 | 1020 | 1920 |
| 24040 CA/W33 / CAK/W33 | 200 | 310 | 109 | 1180 | 2230 |
| 24044 CA/W33 / CAK/W33 | 220 | 340 | 118 | 1400 | 2670 |
| 24048 CA/W33 / CAK/W33 | 240 | 360 | 118 | 1430 | 2800 |
| 24052 CA/W33 / CAK/W33 | 260 | 400 | 140 | 1890 | 3700 |
| 24056 CA/W33 / CAK/W33 | 280 | 420 | 140 | 1930 | 3900 |
| 24060 CA/W33 / CAK/W33 | 300 | 460 | 160 | 2420 | 4850 |
| 24064 CA/W33 / CAK/W33 | 320 | 480 | 160 | 2470 | 5100 |
| 24068 CA/W33 / CAK/W33 | 340 | 520 | 180 | 2960 | 6050 |
| 24072 CA/W33 / CAK/W33 | 360 | 540 | 180 | 3050 | 6350 |
| 24076 CA/W33 / CAK/W33 | 380 | 560 | 180 | 3100 | 6650 |
| 24080 CA/W33 / CAK/W33 | 400 | 600 | 200 | 3600 | 7650 |
| 24084 CA/W33 / CAK/W33 | 420 | 620 | 200 | 3700 | 8000 |
| 24088 CA/W33 / CAK/W33 | 440 | 650 | 212 | 4150 | 9000 |
| 24092 CA/W33 / CAK/W33 | 460 | 680 | 218 | 4400 | 9650 |
| 24096 CA/W33 / CAK/W33 | 480 | 700 | 218 | 4550 | 10100 |
| 240/500 CA/W33 / CAK/W33 | 500 | 720 | 218 | 4650 | 10500 |
| 240/530 CA/W33 / CAK/W33 | 530 | 780 | 250 | 5600 | 12500 |
| 240/560 CA/W33 / CAK/W33 | 560 | 820 | 258 | 6000 | 13500 |
| 240/600 CA/W33 / CAK/W33 | 600 | 870 | 272 | 6500 | 14900 |
| 240/670 CA/W33 / CAK/W33 | 670 | 980 | 308 | 8650 | 19800 |
| 240/800 CA/W33 / CAK/W33 | 800 | 1150 | 345 | 11100 | 27200 |
| 24122 CA/W33 / CAK/W33 | 110 | 180 | 69 | 455 | 743 |
| 24124 CA/W33 / CAK/W33 | 120 | 200 | 80 | 586 | 970 |
| 24126 CA/W33 / CAK/W33 | 130 | 210 | 80 | 604 | 1030 |
| 24128 CA/W33 / CAK/W33 | 140 | 225 | 85 | 685 | 1180 |
| 24130 CA/W33 / CAK/W33 | 150 | 250 | 100 | 888 | 1520 |
| 24132 CA/W33 / CAK/W33 | 160 | 270 | 109 | 1040 | 1810 |
| 24134 CA/W33 / CAK/W33 | 170 | 280 | 109 | 979 | 1650 |
| 24136 CA/W33 / CAK/W33 | 180 | 300 | 118 | 1180 | 2040 |
| 24138 CA/W33 / CAK/W33 | 190 | 320 | 128 | 1370 | 2380 |
| 24140 CA/W33 / CAK/W33 | 200 | 340 | 140 | 1600 | 2820 |
| 24144 CA/W33 / CAK/W33 | 220 | 370 | 150 | 1820 | 3250 |
| 24148 CA/W33 / CAK/W33 | 240 | 400 | 160 | 2050 | 3700 |
| 24152 CA/W33 / CAK/W33 | 260 | 440 | 180 | 2550 | 4650 |
| 24156 CA/W33 / CAK/W33 | 280 | 460 | 180 | 2580 | 4800 |
| 24160 CA/W33 / CAK/W33 | 300 | 500 | 200 | 3200 | 6100 |
| 24164 CA/W33 / CAK/W33 | 320 | 540 | 218 | 3650 | 6900 |
| 24168 CA/W33 / CAK/W33 | 340 | 580 | 243 | 4350 | 8300 |
| 24172 CA/W33 / CAK/W33 | 360 | 600 | 243 | 4500 | 8750 |
| 24176 CA/W33 / CAK/W33 | 380 | 620 | 243 | 4650 | 9300 |
| 24180 CA/W33 / CAK/W33 | 400 | 650 | 250 | 4950 | 9850 |
| 24184 CA/W33 / CAK/W33 | 420 | 700 | 280 | 6000 | 12000 |
| 24188 CA/W33 / CAK/W33 | 440 | 720 | 280 | 6150 | 12700 |
| 24192 CA/W33 / CAK/W33 | 460 | 760 | 300 | 6800 | 13900 |
| 24196 CA/W33 / CAK/W33 | 480 | 790 | 308 | 7150 | 14800 |
| 241/500 CA/W33 / CAK/W33 | 500 | 830 | 325 | 7950 | 16200 |
| 29412 M/EM | 60 | 130 | 42 | 299 | 890 |
| 29413 M/EM | 65 | 140 | 45 | 345 | 1040 |
| 29414 M/EM | 70 | 150 | 48 | 375 | 1110 |
| 29415 M/EM | 75 | 160 | 51 | 445 | 1380 |
| 29416 M/EM | 80 | 170 | 54 | 480 | 1490 |
| 29317 M/EM | 85 | 150 | 39 | 293 | 990 |
| 29417 M/EM | 85 | 180 | 58 | 540 | 1720 |
| 29318 M/EM | 90 | 155 | 39 | 300 | 1040 |
| 29418 M/EM | 90 | 190 | 60 | 620 | 2020 |
| 29320 M/EM | 100 | 170 | 42 | 355 | 1260 |
| 29420 M/EM | 100 | 210 | 67 | 390 | 2230 |
| 29322 M/EM | 110 | 190 | 48 | 470 | 1680 |
| 29422 M/EM | 110 | 230 | 73 | 845 | 2820 |
| 29324 M/EM | 120 | 210 | 54 | 565 | 2030 |
| 29424 M/EM | 120 | 250 | 78 | 1030 | 3450 |
| 29326 M/EM | 130 | 225 | 58 | 665 | 2420 |
| 29426 M/EM | 130 | 270 | 85 | 1140 | 3850 |
| 29328 M/EM | 140 | 240 | 60 | 700 | 2560 |
| 29428 M/EM | 140 | 280 | 85 | 1200 | 4050 |
| 29230 M/EM | 150 | 215 | 39 | 335 | 1390 |
| 29330 M/EM | 150 | 250 | 60 | 735 | 2840 |
| 29430 M/EM | 150 | 300 | 90 | 1330 | 4600 |
| 29232 M/EM | 160 | 225 | 39 | 345 | 1470 |
| 29332 M/EM | 160 | 270 | 67 | 880 | 3400 |
| 29432 M/EM | 160 | 320 | 95 | 1510 | 5350 |
| 29234 M/EM | 170 | 240 | 42 | 390 | 1700 |
| 29334 M/EM | 170 | 280 | 67 | 900 | 3550 |
| 29434 M/EM | 170 | 340 | 103 | 1670 | 5900 |
| 29236 M/EM | 180 | 250 | 42 | 420 | 1900 |
| 29336 M/EM | 180 | 300 | 73 | 1020 | 3950 |
| 29436 M/EM | 180 | 360 | 109 | 1950 | 7000 |
| 29238 M/EM | 190 | 270 | 48 | 540 | 2300 |
| 29338 M/EM | 190 | 320 | 78 | 1170 | 4550 |
| 29438 M/EM | 190 | 380 | 115 | 2120 | 7750 |
| 29240 M/EM | 200 | 280 | 48 | 550 | 2410 |
| 29340 M/EM | 200 | 340 | 85 | 1350 | 5250 |
| 29440 M/EM | 200 | 400 | 122 | 2350 | 8450 |
| 29244 M/EM | 220 | 300 | 48 | 595 | 2750 |
| 29344 M/EM | 220 | 360 | 85 | 1410 | 5750 |
| 29444 M/EM | 220 | 420 | 122 | 2410 | 8950 |
| 29248 M/EM | 240 | 340 | 60 | 890 | 4000 |
| 29348 M/EM | 240 | 380 | 85 | 1410 | 5850 |
| 29448 M/EM | 240 | 440 | 122 | 2480 | 9450 |
| 29252 M/EM | 260 | 360 | 60 | 915 | 4250 |
| 29352 M/EM | 260 | 420 | 95 | 1810 | 7500 |
| 29452 M/EM | 260 | 480 | 132 | 2940 | 11600 |
| 29256 M/EM | 280 | 380 | 60 | 935 | 4500 |
| 29356 M/EM | 280 | 440 | 95 | 1850 | 7950 |
| 29456 M/EM | 280 | 520 | 145 | 3450 | 13500 |
| 29260 M/EM | 300 | 420 | 73 | 1220 | 5850 |
| 29360 M/EM | 300 | 480 | 109 | 2310 | 10000 |
| 29460 M/EM | 300 | 540 | 145 | 3650 | 14800 |
| 29264 M/EM | 320 | 440 | 73 | 1270 | 6150 |
| 29364 M/EM | 320 | 500 | 109 | 2370 | 10600 |
| 29464 M/EM | 320 | 580 | 155 | 4050 | 16800 |
| 29268 M/EM | 340 | 460 | 73 | 1290 | 6350 |
| 29368 M/EM | 340 | 540 | 122 | 2850 | 12400 |
| 29468 M/EM | 340 | 620 | 170 | 4750 | 19300 |
| 29272 M/EM | 360 | 500 | 85 | 1650 | 8050 |
| 29372 M/EM | 360 | 560 | 122 | 2900 | 12900 |
| 29472 M/EM | 360 | 640 | 170 | 4900 | 20500 |
| 29276 M/EM | 380 | 520 | 85 | 1780 | 8800 |
| 29376 M/EM | 380 | 600 | 132 | 3400 | 15300 |
| 29476 M/EM | 380 | 670 | 175 | 5200 | 22000 |
| 29280 M/EM | 400 | 540 | 85 | 1840 | 9250 |
| 29380 M/EM | 400 | 620 | 132 | 3550 | 16300 |
| 29480 M/EM | 400 | 710 | 185 | 5850 | 25000 |
| 29284 M/EM | 420 | 580 | 95 | 2260 | 11300 |
| 29384 M/EM | 420 | 650 | 140 | 3900 | 17900 |
| 29484 M/EM | 420 | 730 | 185 | 6050 | 26000 |
| 29288 M/EM | 440 | 600 | 95 | 2290 | 11800 |
| 29388 M/EM | 440 | 680 | 145 | 4050 | 19000 |
| 29488 M/EM | 440 | 780 | 206 | 6950 | 30000 |
| 29292 M/EM | 460 | 620 | 95 | 2290 | 11900 |
| 29392 M/EM | 460 | 710 | 150 | 4600 | 21700 |
| 29492 M/EM | 460 | 800 | 206 | 7150 | 31500 |
| 29296 M/EM | 480 | 650 | 103 | 2530 | 13200 |
| 29396 M/EM | 480 | 730 | 150 | 4630 | 21900 |
| 29496 M/EM | 480 | 850 | 224 | 8250 | 36000 |
| 292/500 M/EM | 500 | 670 | 103 | 2590 | 13800 |
| 293/500 M/EM | 500 | 750 | 150 | 4700 | 22600 |
| 294/500 M/EM | 500 | 870 | 224 | 8250 | 35000 |
| 292/530 M/EM | 530 | 710 | 109 | 2820 | 15100 |
| 20204-TVP | 20 | 47 | 14 | -- | -- |
| 20205-TVP | 25 | 52 | 15 | -- | -- |
| 20206-TVP | 30 | 62 | 16 | -- | -- |
| 20207-TVP | 35 | 72 | 17 | -- | -- |
| 20208-TVP | 40 | 80 | 18 | -- | -- |
| 20209-TVP | 45 | 85 | 19 | -- | -- |
| 20210-TVP | 50 | 90 | 20 | -- | -- |
| 20211-TVP | 55 | 100 | 21 | -- | -- |
| 20212-TVP | 60 | 110 | 22 | -- | -- |
| 20213-TVP | 65 | 120 | 23 | -- | -- |
| 20214-TVP | 70 | 125 | 24 | -- | -- |
| 20215-TVP | 75 | 130 | 25 | -- | -- |
| 20216-TVP | 80 | 140 | 26 | -- | -- |
| 20217-MB | 85 | 150 | 28 | -- | -- |
| 20218-MB | 90 | 160 | 30 | -- | -- |
| 20219-MB | 95 | 170 | 32 | -- | -- |
| 20220-MB | 100 | 180 | 34 | -- | -- |
| 20221-MB | 105 | 190 | 36 | -- | -- |
| 20222-MB | 110 | 200 | 38 | -- | -- |
| 20224-MB | 120 | 215 | 40 | -- | -- |
| 20226-MB | 130 | 230 | 40 | -- | -- |
| 20228-MB | 140 | 250 | 42 | -- | -- |
| 20230-MB | 150 | 270 | 45 | -- | -- |
| 20232-MB | 160 | 290 | 48 | -- | -- |
| 20234-MB | 170 | 310 | 52 | -- | -- |
| 20236-MB | 180 | 320 | 52 | -- | -- |
| 20238-MB | 190 | 340 | 55 | -- | -- |
| 20240-MB | 200 | 360 | 58 | -- | -- |
| 20244-MB | 220 | 400 | 65 | -- | -- |
| 20248-MB | 240 | 440 | 72 | -- | -- |
| 20252-MB | 260 | 480 | 80 | -- | -- |
| 20304-TVP | 20 | 52 | 15 | -- | -- |
| 20305-TVP | 25 | 62 | 17 | -- | -- |
| 20306-TVP | 30 | 72 | 19 | -- | -- |
| 20307-TVP | 35 | 80 | 21 | -- | -- |
| 20308-TVP | 40 | 90 | 23 | -- | -- |
| 20309-TVP | 45 | 100 | 25 | -- | -- |
| 20310-TVP | 50 | 110 | 27 | -- | -- |
| 20311-TVP | 55 | 120 | 29 | -- | -- |
| 20312-TVP | 60 | 130 | 31 | -- | -- |
| 20313-MB | 65 | 140 | 33 | -- | -- |
| 20314-MB | 70 | 150 | 35 | -- | -- |
| 20315-MB | 75 | 160 | 37 | -- | -- |
| 20316-MB | 80 | 170 | 39 | -- | -- |
| 20317-MB | 85 | 180 | 41 | -- | -- |
| 20318-MB | 90 | 190 | 43 | -- | -- |
| 20319-MB | 95 | 200 | 45 | -- | -- |
| 20320-MB | 100 | 215 | 47 | -- | -- |
| 20322-MB | 110 | 240 | 50 | -- | -- |
| 20324-MB | 120 | 260 | 55 | -- | -- |
| 20326-MB | 130 | 280 | 58 | -- | -- |
| 20328-MB | 140 | 300 | 62 | -- | -- |
| 20330-MB | 150 | 320 | 65 | -- | -- |
